Unity SDK (v4)

Attention

This is a guide for the installation and setup of Unity SDK v4. Please check the Unity SDK guide for previous versions.

You can install the Airbridge Unity SDK and add the settings.

Install SDK

The Airbridge Unity SDK can be installed using the method below. After installation, you can confirm whether the SDK has been properly installed through a Unity SDK Test.

  1. Download the latest version of the Airbridge Unity SDK.

  2. Choose Assets > Import Package > Custom Package ... and import the downloaded package file.

  3. The AB180 tab will appear in the menu once the package is installed.

Install Restricted SDK

Attention

Install only one version of the SDK, either the general SDK or the restricted SDK.

Depending on policies and environments, restrictions on collecting device IDs like GAID and IDFA may be required. When installing the Restricted SDK version, the device IDs are not collected.

Install the Restricted SDK using the method below.

  1. Download the latest version of the Airbridge Unity SDK.

  2. Choose Assets > Import Package > Custom Package ... and import the downloaded package file.

  3. The AB180 tab will appear in the menu once the package is installed.

Initialize SDK

Enter the correct values for the App Name, App Token in the Configure SDK.

You can find  App Name and App Token in the "Airbridge Dashboard → Settings → Tokens" tab.

Configure SDK

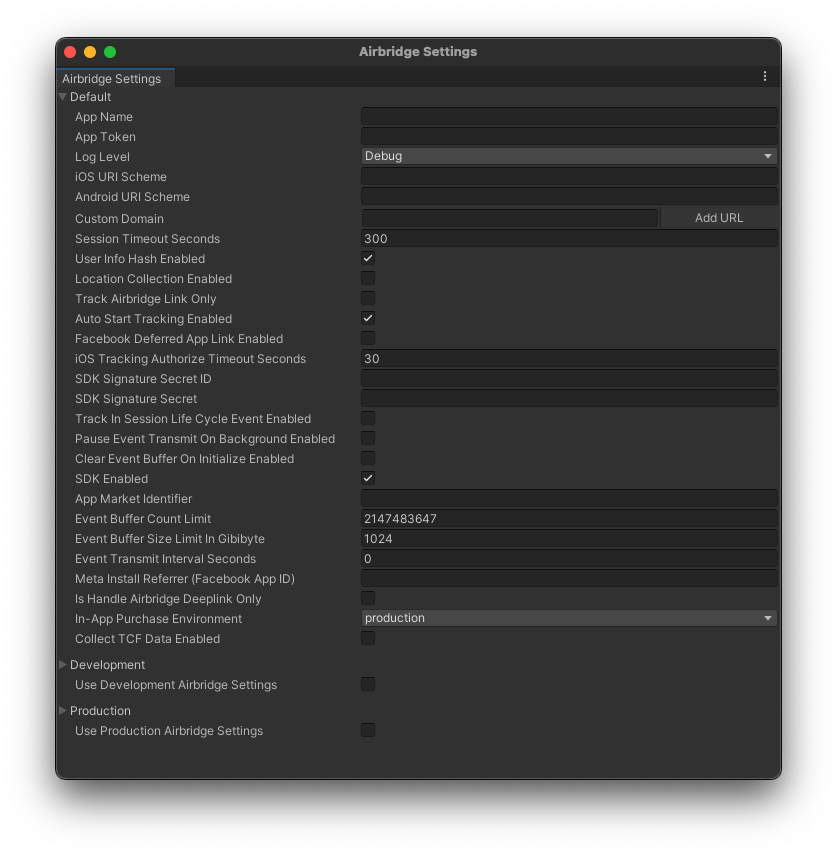

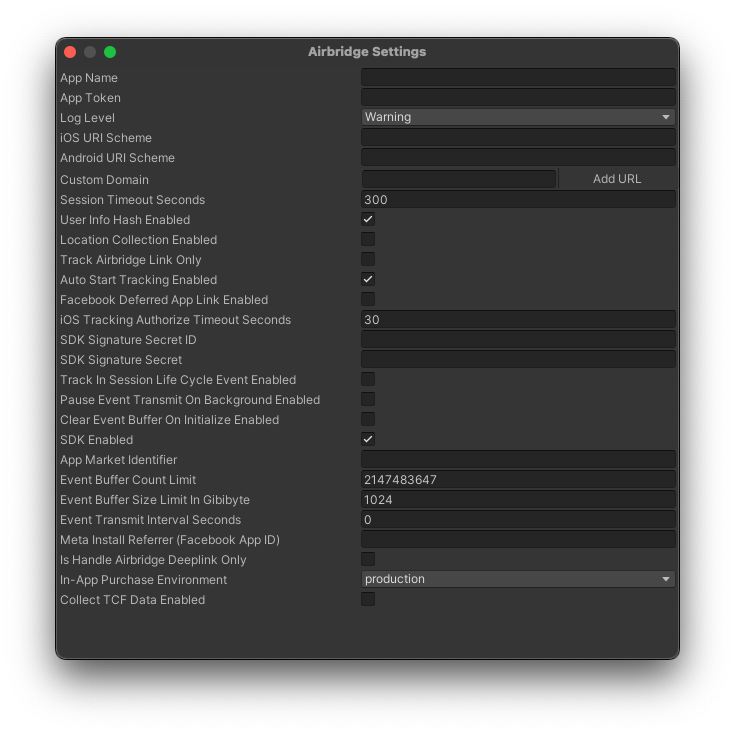

Choose AB180 > Airbridge Settings and you will see a screen like the one below. You can omit the key values that don't need to be set.

Configure ATT Prompt

Note

The functions necessary to ensure compliance with privacy policies should be reviewed with legal counsel.

In the iOS environment, only the IDFA of users who have agreed to information collection in the AppTrackingTransparency (ATT) prompt can be collected as identifiers.

Event collection should be delayed until the user agrees to tracking. If you collect app installation events before the user agrees to information collection in the ATT prompt, the event will lack an identifier, making performance measurement difficult. We recommend setting a sufficient delay time for event collection in order to collect identifiers.합니다.

1. Prepare the phrase you will use for the ATT prompt.

2. Please provide the ATT prompt following the guide provided by Apple.

3. If the Airbridge Unity SDK doesn't collect installation events, it delays the collection of installation events for 30 seconds until the user agrees to be tracked each time the app is launched. If the user exits the app before deciding whether to allow tracking, it does not collect installation events and will try again on the next app launch.

The iOS Tracking Authorize Timeout Seconds of Configure SDK can be used to set a longer delay for collecting installation events. The default setting for the iOS Tracking Authorize Timeout Seconds is 300 seconds. It can be set up to a maximum of 3600 seconds (1 hour).

Attention

Sufficient time must be configured to delay the collection of install events. If the delay time is up, the SDK will collect install events without identifiers before users can allow tracking on the ATT prompt.

SDK Opt-In

Attention

The instructions below are optional. Proceed only if necessary.

Opt-In is a policy that does not use user information until the user agrees.

After setting the Auto Start Tracking Enabled of Configure SDK to false, call the StartTracking function at the point where you can collect events. From the time the StartTracking function is called, events are collected.

1
Airbridge.StartTracking();

SDK Opt-Out

Attention

The instructions below are optional. Proceed only if necessary.

Opt-Out is a policy that does not use user information until the user agrees.

After setting the Auto Start Tracking Enabled of Configure SDK to true, call the StopTracking function at the point where you can not collect events. From the time the StopTracking function is called, events are not collected.

1
Airbridge.StopTracking();

SDK Signature

Attention

The instructions below are optional. Proceed only if necessary.

With SDK Signature, you can prevent SDK Spoofing and use only events with verified accuracy and safety for advertising performance measurement.

The SDK Signature setting requires SDK Signature security information. The SDK Signature security information includes Secret ID and Secret. The required SDK Signature security information can be found on the Airbridge dashboard. For more details about SDK Signature security information, please refer to the Airbridge guide.

  1. Enter the SDK Signature Secret ID of Configure SDK

  2. Enter the SDK Signature Secret of Configure SDK

The information needed for SDK configuration is as follows.

  • sdkSignatureID : Signature ID. This can be found under [Management]>[Fraud Verification Rules]>[SDK Signature] on the Airbridge Dashboard.

  • sdkSignatureSecret : Signature Secret. This can be found under [Management]>[Fraud Verification Rules]>[SDK Signature] on the Airbridge Dashboard.

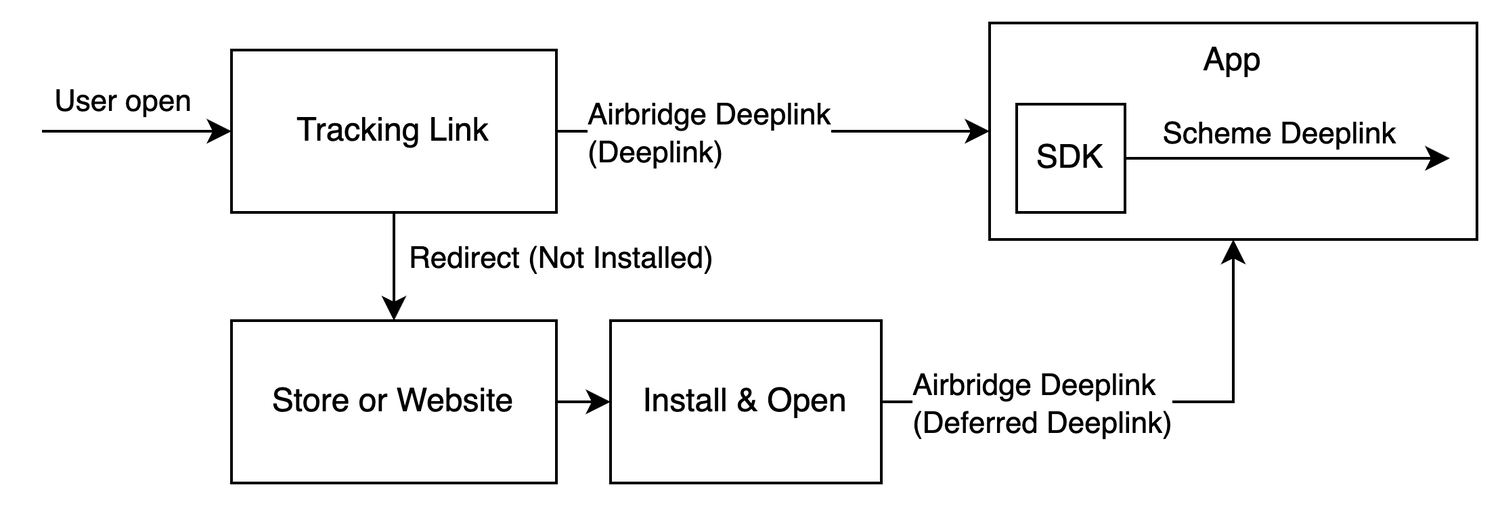

By setting up a deeplink, you can direct users who click on ads with tracking links to specific pages of the desired app. Also, based on the information collected through the tracking link, you can check the results that occurred through the deep link in Airbridge.

When Airbridge generates a tracking link, it automatically selects and utilizes the optimal Airbridge Deeplink depending on the environment, which will be used for user transition, the scheme deeplink (Scheme Deeplink).

Example)

  • Airbridge Deeplink: https://YOUR_APP_NAME.airbridge.io/~~~

  • Scheme Deeplink: YOUR_SCHEME://product/12345

When the app is installed, if a user opens the tracking link, the app opens with the Airbridge Deeplink. The Airbridge SDK converts the Airbridge Deeplink into a scheme deeplink that is set on the tracking link. The converted scheme deeplink is delivered to the app.

If the app is not installed, when a user opens the tracking link, it saves the Airbridge Deeplink. After moving to the app store or website, once the app is installed and run, the Airbridge SDK converts the saved Airbridge Deeplink into a scheme deeplink. The converted scheme deeplink is delivered to the app.

We are setting up deep links. You will need the information set on the Airbridge dashboard and the app page address used as the user's destination.

First, register the deep link information in Airbridge.

After registering the deep link information with Airbridge, you need to set up the deep link in the app. The necessary developments for deep linking in an app include the following:

  • Launch apps with Airbridge deep links.

  • Collect deep link events in the app.

  • Redirect users with Airbridge deep links.

Please refer to the content below.

When you click a tracking link set up with a deferred deeplink in a state where the app is not installed, Airbridge saves the deeplink. When a deferred deeplink is set up, the Airbridge SDK acquires the deeplink in the following way.

Deferred deep links are automatically passed to onDeeplinkReceived callback, so no additional settings are required.

In-app events

The Airbridge SDK collects specific user actions that occur in the service, according to the settings, and then sends them as in-app events.

Send In-App Events

Setting up a Hybrid App

You can set up the Unity SDK to handle Airbridge-related work occurring on in-app websites in hybrid apps without changing the website code.

To send an event, you must call the Airbridge.TrackEvent function. The necessity and type of the components of the Airbridge.TrackEvent function are as follows.

12345
public static void TrackEvent(
    string category,
    Dictionary<string, object> semanticAttributes = null,
    Dictionary<string, object> customAttributes = null
)

Component

Required

Type

Description

category

Required

String

Categories in Events

semanticAttributes

Optional

Dictionary<string, object>

Semantic attributes for events

customAttributes

Optional

Dictionary<string, object>

Custom attributes for events

Check the definition and available characters of each component below.

The standard event categories and semantic attributes provided by the SDK are as follows.

Refer to the example codes for each type of data below.

1234567891011121314151617181920
Airbridge.TrackEvent(
    category: "event",
    semanticAttributes: new Dictionary<string, object>()
    {
        { AirbridgeAttribute.VALUE, 10 },
    },
    customAttributes: new Dictionary<string, object>()
    {
        { "string", "string" },
        { "number", 1000 },
        { "boolean", true },
        {
            "object", new Dictionary<string, object>()
            {
                { "key", "value" }
            }
        },
        { "array", new List<object>() { "value" } },
    }
);

Set Additional In-App Event settings

Attention

The default settings will apply if no additional settings are configured. Proceed after reviewing whether additional settings are necessary.

You can add the necessary settings for the in-app events that you send.

Example Code

The main in-app events collected by Airbridge are standard events and custom events. Standard events are those defined by Airbridge. Refer to the example code below.

Custom events are events that redefine user behavior that does not correspond to standard events to track advertising performance tailored to the app service. Please refer to the example code below.

1234567891011121314151617181920
Airbridge.TrackEvent(
    category: "event",
    semanticAttributes: new Dictionary<string, object>()
    {
        { AirbridgeAttribute.VALUE, 10 },
    },
    customAttributes: new Dictionary<string, object>()
    {
        { "string", "string" },
        { "number", 1000 },
        { "boolean", true },
        {
            "object", new Dictionary<string, object>()
            {
                { "key", "value" }
            }
        },
        { "array", new List<object>() { "value" } },
    }
);

User Information

Sends user information, including events. Based on this user information, we can more accurately analyze advertising performance that occurs on the web and app.

Set User ID

The User ID is a user identifier used in the service. The User ID should be a unique ID that can identify a user as one user across the web and app.

#{"width":"140px"}

Function

#{"width":"240px"}

Description

Airbridge.SetUserID

Enter a user ID.

Airbridge.ClearUserID

Delete the user ID.

Airbridge.SetUserAlias

Enter additional user identifiers. You can enter up to 10.

- key: Up to 128 characters. It must satisfy the regular expression: ^[a-zA-Z_][a-zA-Z0-9_]*$.

- value: Up to 1024 characters.

Airbridge.RemoveUserAlias

Deletes the specified identifier from the additional user identifiers entered.

Airbridge.ClearUserAlias

Delete all additional user identifiers entered..

Refer to the example below.

1234567
// ID
Airbridge.SetUserID("testID");

// Alias
Airbridge.SetUserAlias("ADD_YOUR_KEY", "ADD_YOUR_VALUE");
Airbridge.RemoveUserAlias("DELETE_THIS_KEY");
Airbridge.ClearUserAlias();

Set Additional User Information

Attention

Sensitive user information may be included. Send after a thorough review with a legal advisor.

You can send additional user information by setting user attributes.

#{"width":"140px"}

Function

#{"width":"240px"}

Description

Airbridge.SetUserEmail

Enter the user email. It is hashed with SHA256.

Airbridge.ClearUserEmail

Delete the user email.

Airbridge.SetUserPhone

Enter the user phone number. It is hashed with SHA256.

Airbridge.ClearUserPhone

Delete the user phone number.

Airbridge.SetUserAttribute

Enter additional user attributes. You can enter up to 100.

- key: Up to 128 characters. It must satisfy the regular expression: ^[a-zA-Z_][a-zA-Z0-9_]*$.

- value: Only supports String, Number, and Boolean types. Up to 1024 characters.

Airbridge.RemoveUserAttribute

Delete the specified attribute from the additional user attributes entered.

Airbridge.ClearUserAttributes

Delete all additional user attributes.

Refer to the example below.

1234567891011121314
// Automatically hashed on client side using SHA256
// Can turn off hashing feature with special flag
Airbridge.SetUserEmail("testID@ab180.co");
Airbridge.SetUserPhone("821012341234");

// Attributes
Airbridge.SetUserAttribute("ADD_YOUR_KEY", 1);
Airbridge.SetUserAttribute("ADD_YOUR_KEY", 1L);
Airbridge.SetUserAttribute("ADD_YOUR_KEY", 1f);
Airbridge.SetUserAttribute("ADD_YOUR_KEY", 1.0);
Airbridge.SetUserAttribute("ADD_YOUR_KEY", "1");
Airbridge.SetUserAttribute("ADD_YOUR_KEY", true);
Airbridge.RemoveUserAttribute("DELETE_THIS_KEY");
Airbridge.ClearUserAttributes();

Hash user information

When the User Info Hash Enabled of Configure SDK is set to false, it sends the user's email and phone number without hashing. The default setting is true.

Reset User Information

You can initialize user information with the Airbridge.ClearUser function.

1
Airbridge.ClearUser();

Additional SDK settings

You can additionally set up the Unity SDK.

Attention

The instructions below are optional. Proceed only if necessary.

The deep links received through the Airbridge.SetOnDeeplinkReceived method of the Airbridge Unity SDK include not only Airbridge deep links but also deep links from other solutions.

1234
Airbridge.SetOnDeeplinkReceived((string deeplink) =>
{
    // show proper content using url
});

If you set Is Handle Airbridge Deeplink Only to true, only Airbridge deep links will be delivered through the onDeeplinkReceived callback. If you are using deep links from different solutions, you can handle the deep links separately.

Depending on how the link is opened, it may be difficult to properly use the tracking link of the app in-app.

By using the Airbridge.Click function or the Airbridge.Impression function, you can properly use the tracking link without going through an external browser.

Attention

When you set up the Airbridge SDK to use tracking links within apps, every time a tracking link is used within the app, Deeplink Pageviews are aggregated as Target Events. The deep link performance may be affected when Deeplink Pageviews occur frequently right after Deeplink Opens.

The attribution window for Deeplink Pageviews is set to 3 days by default. If you want to change the attribution window for Deeplink Pageviews, contact your Airbridge CSM. If you don't have a designated CSM, contact the Airbridge Help Center.

Utilize Attribution Results

Attention

It takes some time for the Airbridge SDK to collect attribution results. We do not recommend using attribution results for functionalities requiring real-time processing.

You can receive attribution results for installation events through the Airbridge.SetOnAttributionReceived function.

1234
Airbridge.SetOnAttributionReceived((Dictionary<string, object> result) =>
{
    // Process attribution data
});

The value is delivered as follows, depending on the existence of attribution results.

Attention

Apply the code below using a custom iOS AppDelegate.

After the push notification is clicked, you need to pass the deep link information in the payload to the Airbridge SDK to collect the deep link event. Set up the Airbridge.trackDeeplink function.

iOS

Add the code below to your custom AppDelegate.

12345678910111213141516171819202122232425262728293031
#import "UnityAppController.h"

#import <Airbridge/Airbridge.h>
#import <UserNotifications/UserNotifications.h>

@interface SomeAppController : UnityAppController<UNUserNotificationCenterDelegate>

@end

@implementation SomeAppController

- (void)application:(UIApplication *)application didReceiveRemoteNotification:(NSDictionary *)userInfo fetchCompletionHandler:(void (^)(UIBackgroundFetchResult))completionHandler {
    UIApplicationState state = UIApplication.sharedApplication.applicationState;
    if (state == UIApplicationStateInactive) {
        NSURL *url = // Deep links in push notification payloads

        Airbridge.trackDeeplink(url)
    }
}

- (void)userNotificationCenter:(UNUserNotificationCenter *)center didReceiveNotificationResponse:(UNNotificationResponse *)response withCompletionHandler:(void (^)(void))completionHandler {
    UIApplicationState state = UIApplication.sharedApplication.applicationState;
    if ((state == UIApplicationStateInactive || state == UIApplicationStateBackground)
        && [response.actionIdentifier isEqualToString:UNNotificationDefaultActionIdentifier]) {
        NSURL *url = // Deep links in push notification payloads

        Airbridge.trackDeeplink(url)
    }
}

IMPL_APP_CONTROLLER_SUBCLASS(SomeAppController)

Android

On Android, this is collected automatically, so no setup is required.

The Airbridge SDK collects deeplink events regardless of the service that created the deeplink, as long as the app is launched by the deeplink. If deeplink events are excessively collected, you can set the Track Airbridge Link Only of Configure SDK to true so that only Airbridge deep links are collected.

Collect In-Session Lifecycle Events

SDK collects Open, Foreground events when a new session is started. It does not collect these events while the session is continued.

By setting the Track In Session Life Cycle Event Enabled of Configure SDK to true, SDK collects Open, Foreground events while the session is continued.

All collected foreground events are recorded as open events.

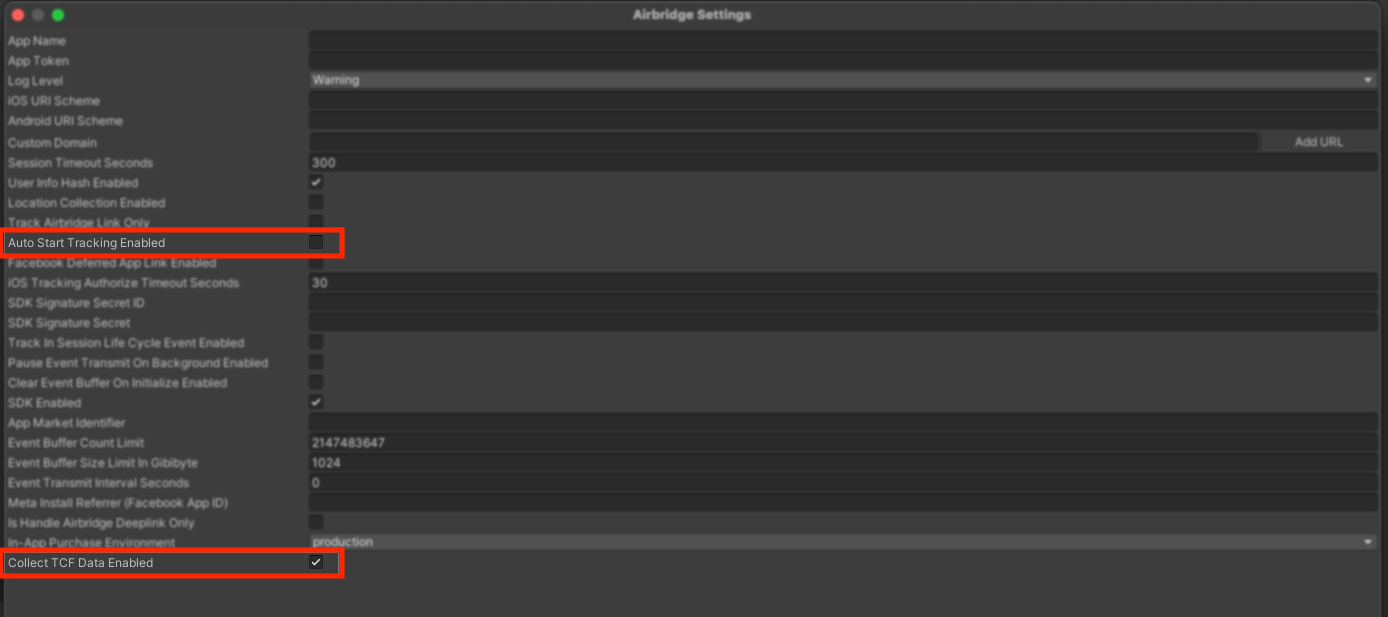

Compliance with Google DMA

To comply with the Digital Markets Act (DMA), you must pass User Response Information (User Consent) to Airbridge. For more information about the DMA and who it applies to, see the Airbridge guide.

If you are in the European Economic Area (EEA), you must always pass User Consent information to Airbridge.

1. Determine the user's region from which they launched your app. If the user launched the app from the EEA(eea=1), check to see if you already have user response information. If you have collected user response information, proceed to step 3.

If the user launched the app from outside the EEA, you do not need to collect user response information.

Note

Airbridge cannot provide guidance on storing the user consent data and implementing the prompts. For assistance, consult legal professionals.

2. If you don't have any user response information collected, collect user response information from prompts, etc. The information you need to collect in this step is adPersonalization, adUserData.

3. Set the Auto Start Tracking Enabled of Configure SDK to false.

4. Initialise the Airbridge SDK and pass user response information to the Airbridge before collecting user information.

Attention

Take note of the following items.

  • Use the field names specified by Airbridge: eea, adPersonalization, and adUserData

  • Input 0 or 1 in accordance with the consent data collected.

1234567891011
// Set device alias into Airbridge SDK

// Based on actual region
Airbridge.SetDeviceAlias("eea", "0" /* or "1" */);

// Based on actual user consent
Airbridge.SetDeviceAlias("adPersonalization", "0" /* or "1" */);
Airbridge.SetDeviceAlias("adUserData", "0" /* or "1" */);

// Explicitly start tracking
Airbridge.StartTracking();

You can provide deferred deeplink in Meta Ads in the following way. The Airbridge SDK collects meta-deferred app links first. If there are no meta-deferred app links, it collects Airbridge deferred deep links.

SKAdNetwork campaigns in Meta Ads do not support meta deferred app links.

1. Install the Facebook SDK. See the Meta Ads guide (Unity).

2. Set the Facebook Deferred App Link Enabled of Configure SDK to true.

Initialize the Airbridge SDK in Deactivation Mode

Attention

If not activated immediately after the SDK initialization, the Install, Open, Deeplink events may not be collected.

Initializing the Airbridge SDK enables all features. You can initialize the Airbridge SDK with all features disabled by setting the SDK Enabled of Configure SDK to false.

Or you can check the activation status of the Airbridge SDK in the following way, and you can activate or deactivate all functions.

123
Airbridge.IsSDKEnabled();
Airbridge.EnableSDK();
Airbridge.DisableSDK();

Meta Install Referrer collection settings

This is a setting needed for collecting Meta Install Referrer. You send the Facebook App ID to the Meta Install Referrer (Facebook App ID) of Configure SDK in the SDK initialization stage.

After setting, you need to enter the decryption key on the Airbridge dashboard to view the decrypted Meta Install Referrer. Please refer to the Airbridge guide for how to enter the decryption key.

Set Up Uninstall Event Tracking

Airbridge sends a silent push every day between 0:00 and 1:00 KST (Korea Standard Time) to users who have tracked an app event at least once in the last 6 months to check if the app has been deleted. You can check the app deletion event through Airbridge reports and raw data extraction.

Refer to the Airbridge guide for detailed setup methods and explanations.

Integrate with Third-party Solutions

SDK setup is required to integrate with some third-party solutions. It is recommended to complete the necessary settings for the third-party solution before collecting data with the Airbridge SDK.

Refer to the guide below for the settings required for each third-party solution integration.

SDK Log Setting

The logs provided by the Airbridge SDK are composed of Debug, Info, Warning, Error, and Fault levels. Debug level is the least critical log, and Fault level is the most critical log.

By default, the Airbridge SDK provides logs at the Warning, Error, and Fault level. If you input a log level into the Log Level of Configure SDK, you can check logs from that log level to the Fault level.

Was this page helpful?

Have any questions or suggestions?
